Bipak - Biwater's Modular Water Treatment Plant

Biwater Modular Water Treatment Plants (Bipak) have been developed to provide an economical, simple and reliable method of treatment for drinking water. The water treatment is based on conventional treatment processes.

The design is standardised on a range of prefabricated and factory built units to enable fast installation on site.

There are six standard model sizes catering for a population equivalent range of 3,600 to 72,000. Populations for larger communities are catered for with a combination of standard models or the Biclear standard range.

To find out more about Bipak and the model ranges offered, download the Bipak brochure.

Bipak has been successfully installed in a number of countries and has evolved over the years to todays advanced modular treatment system. Here are some examples of Bipak projects delivered over the years.

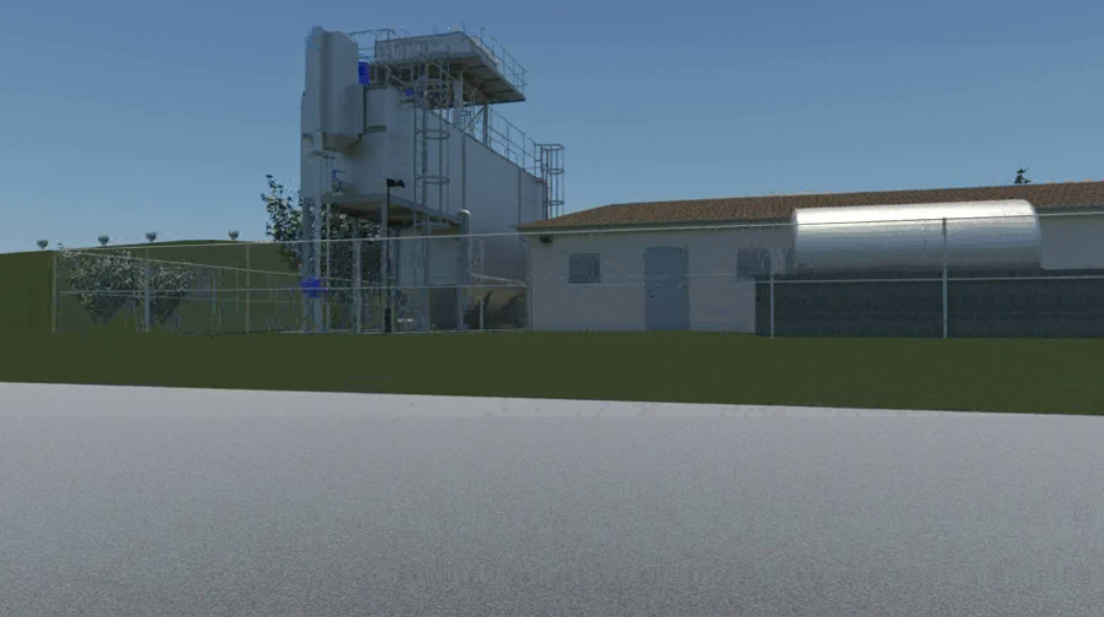

Animated flyover of Biwater’s packaged town drinking water treatment plant (Bipak)

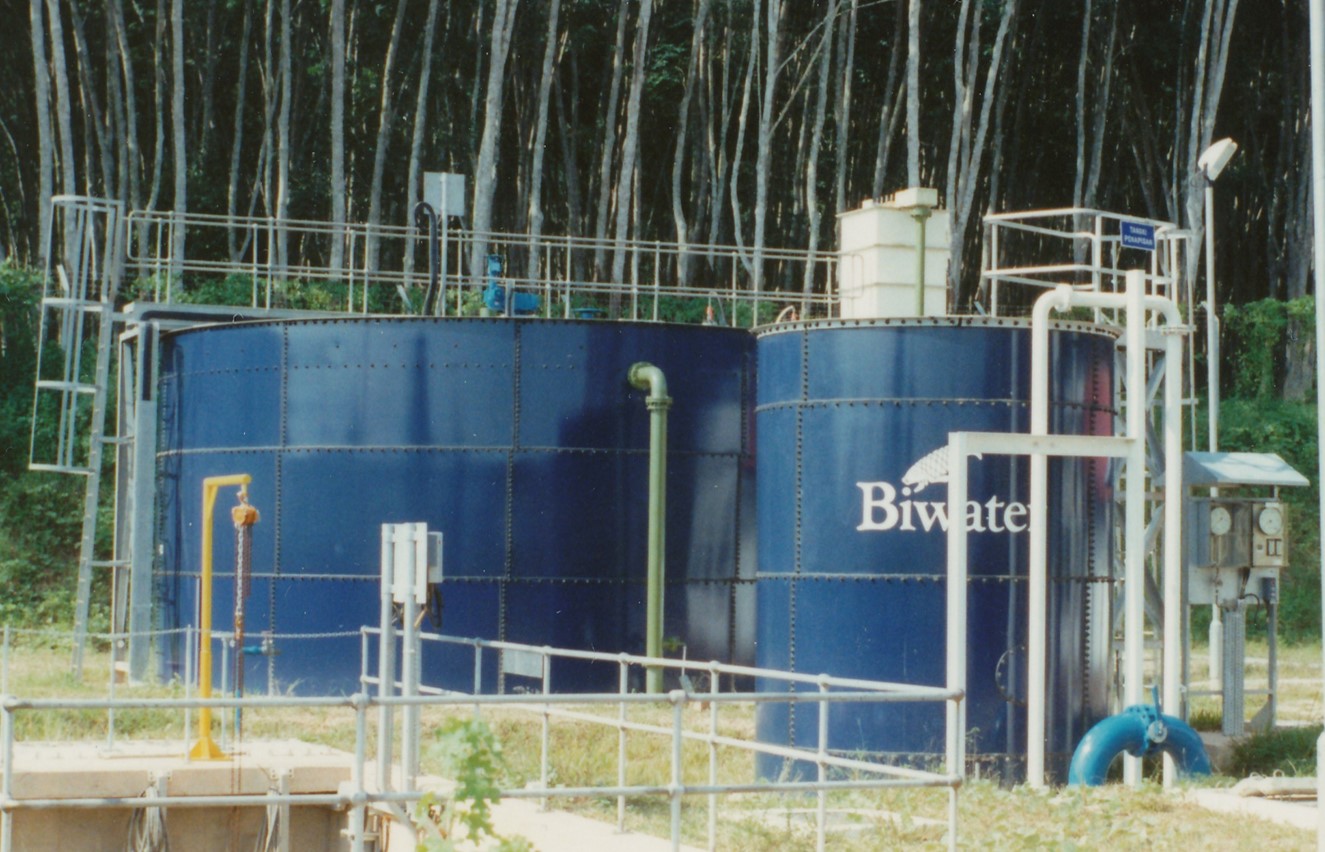

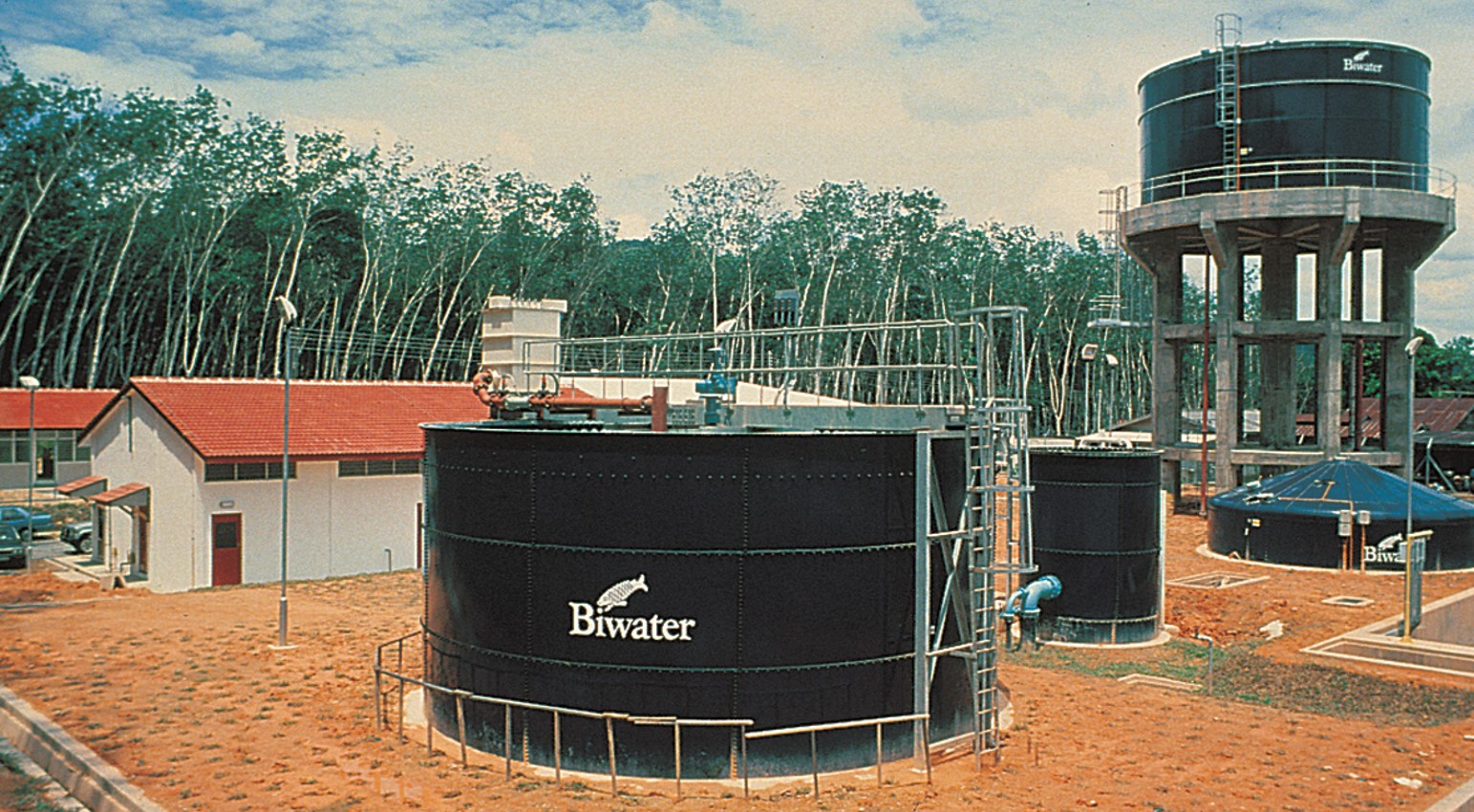

Beroga, Malaysia. Photo highlights the potential layout of the Bipak system to be installed within limited client land allocations

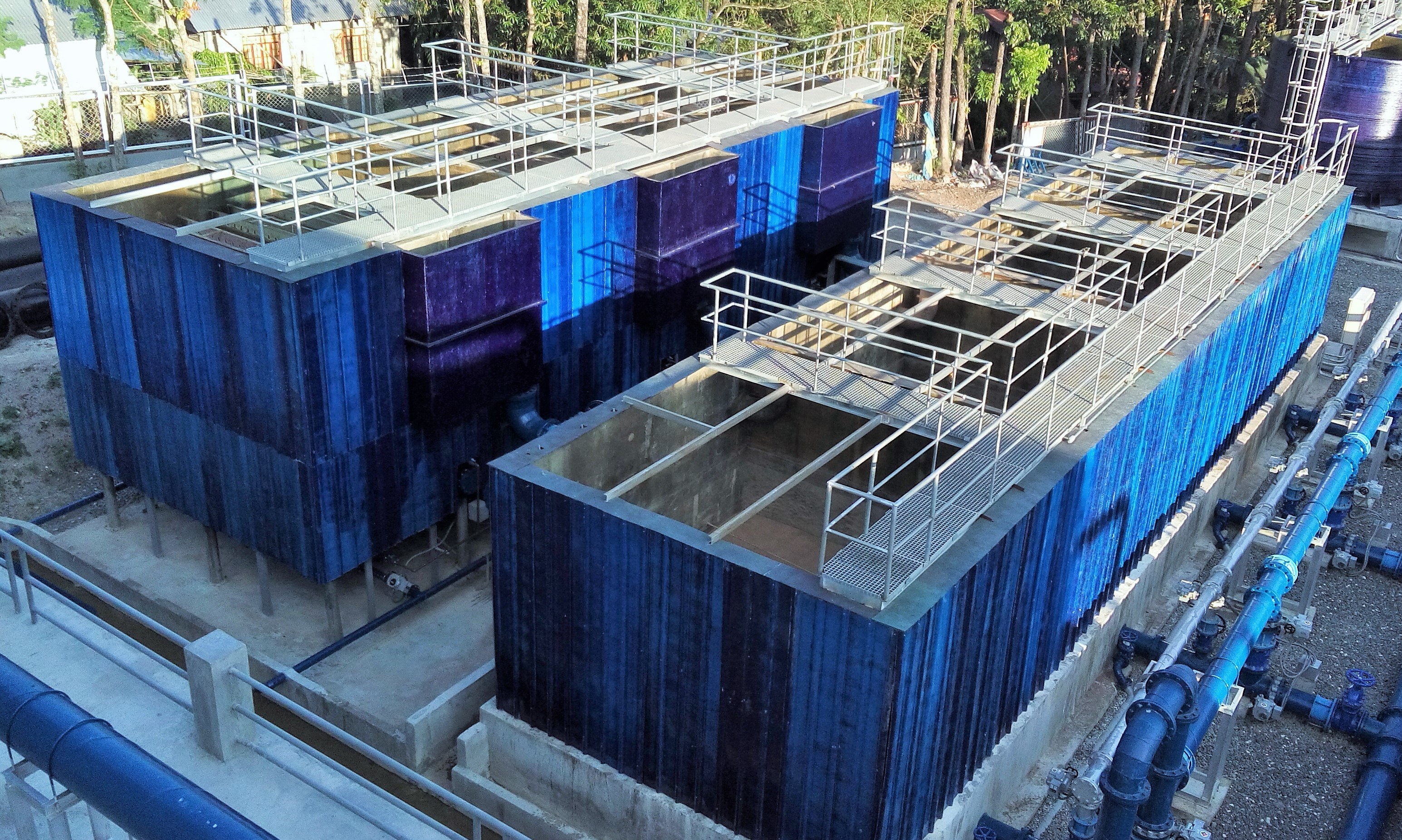

Solano, Philippines. Bipak clarifiers. 10,000 m3/day

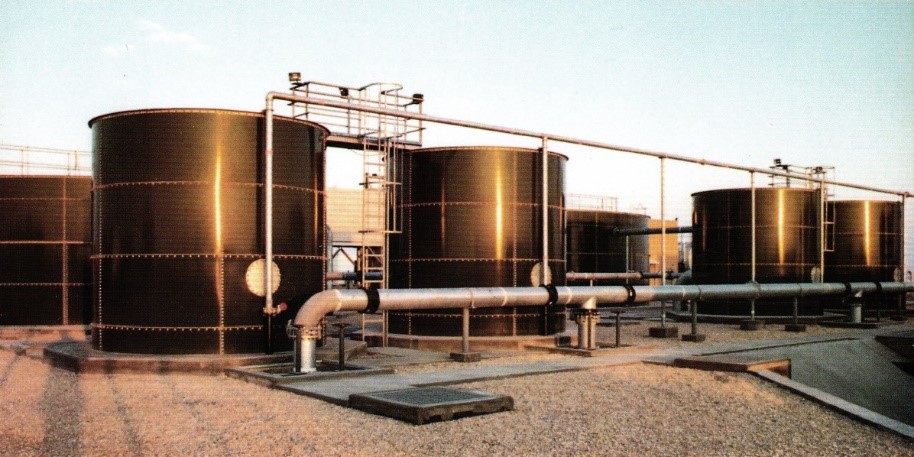

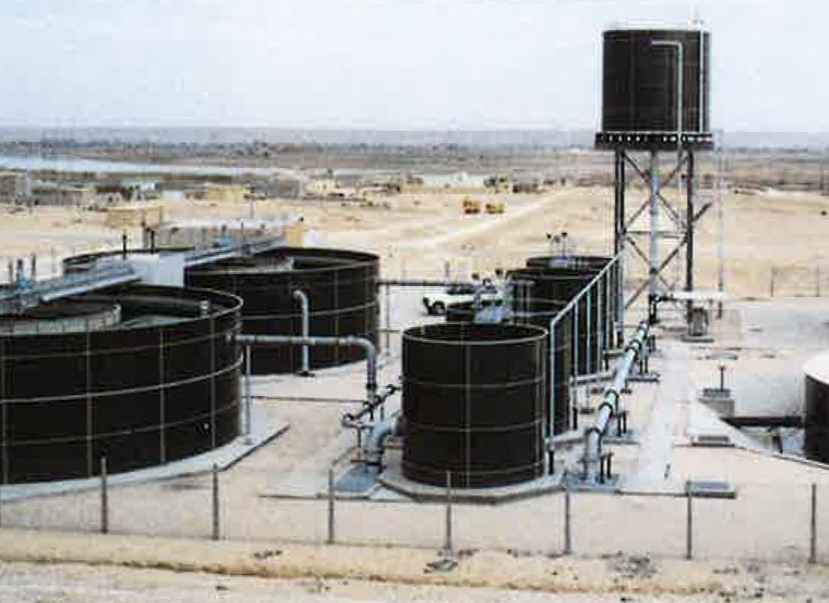

Baghdad Akashat Railway, Iraq. 8,500 m3/day (8.5 million litres per day)

Baghdad Akashat Railway, Iraq. 8,500 m3/day (8.5 million litres per day)

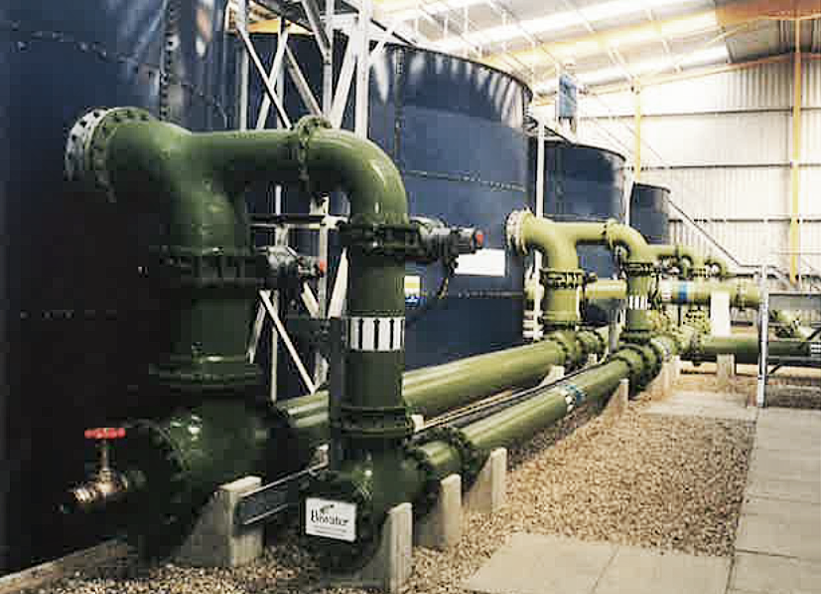

Marham, UK. 14,000 m3/day (14.5 million litres per day)

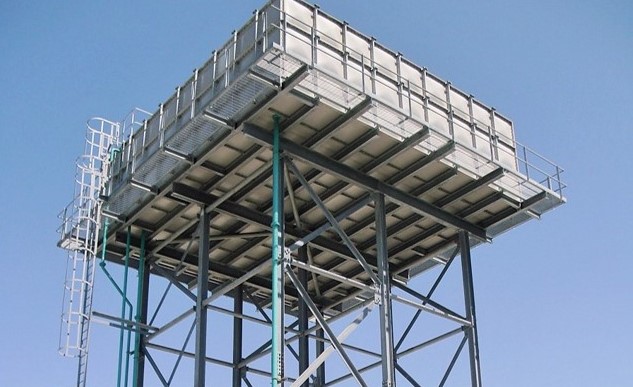

Hithadhoo, Maldives. Elevated distribution reservoir, as per optional module to suit client requirements for the Bipak system

Beroga, Malaysia. Photo highlights the potential compact nature of the Bipak system to be installed within limited client land allocations

Key benefits:

Total Water Treatment Solution
Meets World Health Organisation drinking water standards
Designed and built to British / EU / AWWA Standards
Compact footprint ideal for small to medium sized communities
Rapid Installation with prefabricated factory built and tested modules

General features:

Modular approach allows flexibility to achieve client specific requirements
Reliable and simple operation with minimum maintenance requirements
Proven, simple and reliable process elements

Bipak typical flow schematic:

Biwater have the in-house capability to provide 3D modelling of the proposed Bipak system in the chosen location, as seen in these examples, which provides the client with the benefit of visualising the water treatment solution and how it aligns to their requirements.

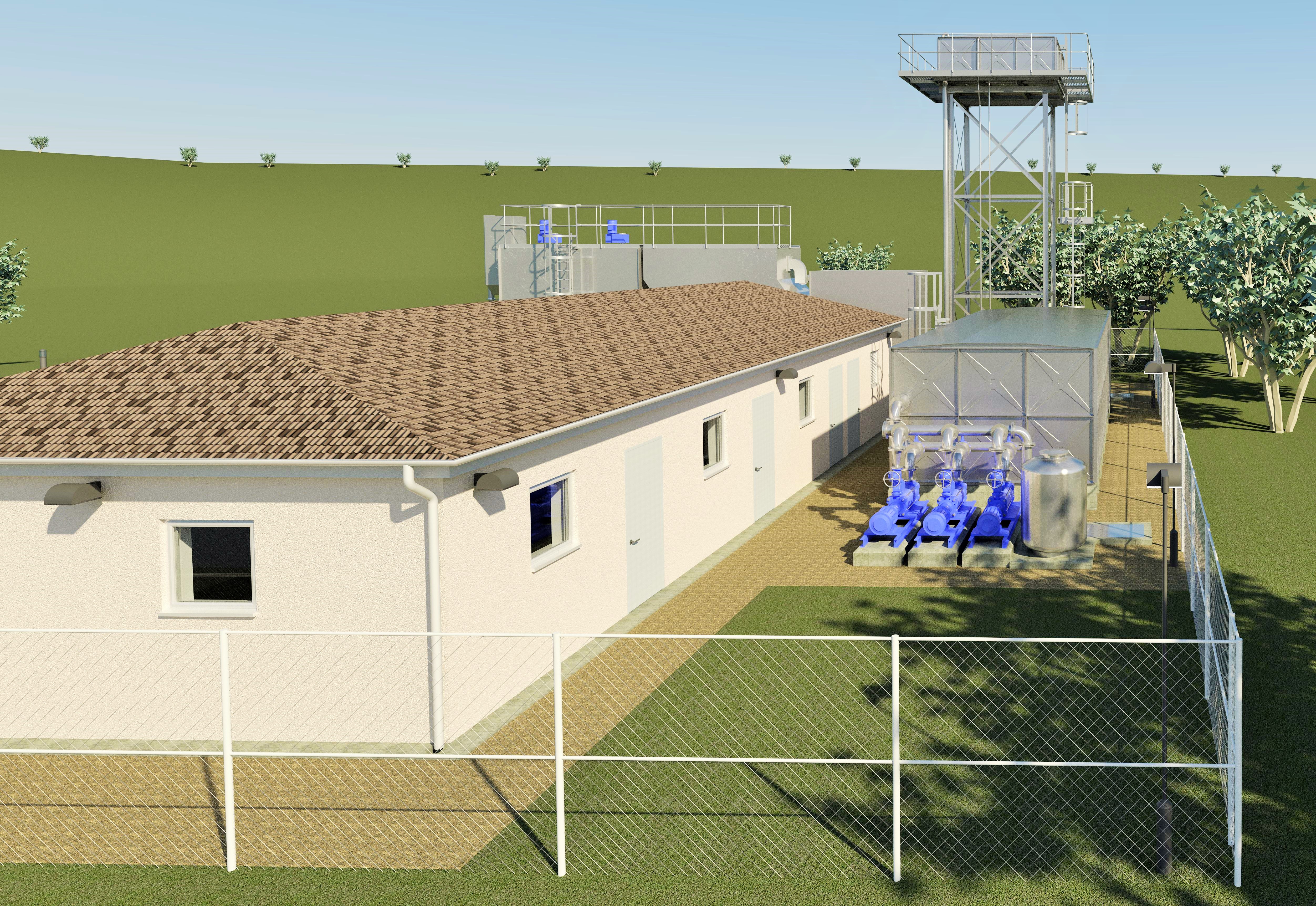

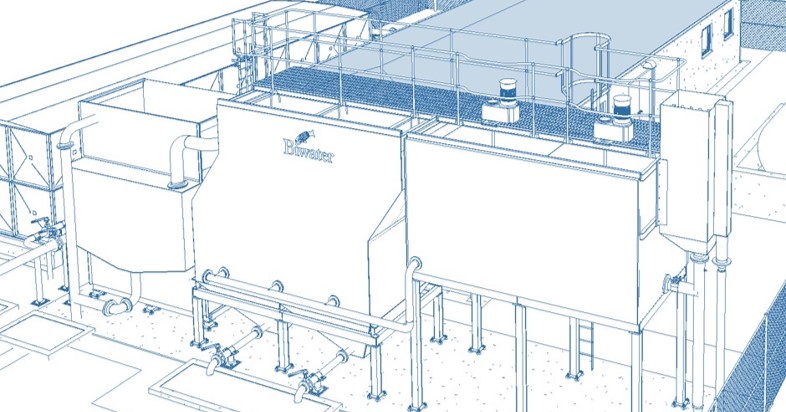

Bipak 3D model. Highlighting compact layout in limited site area

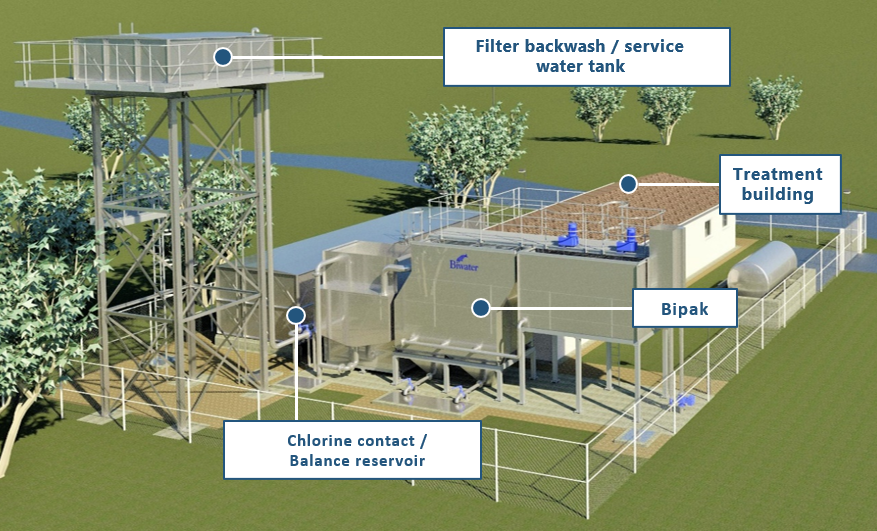

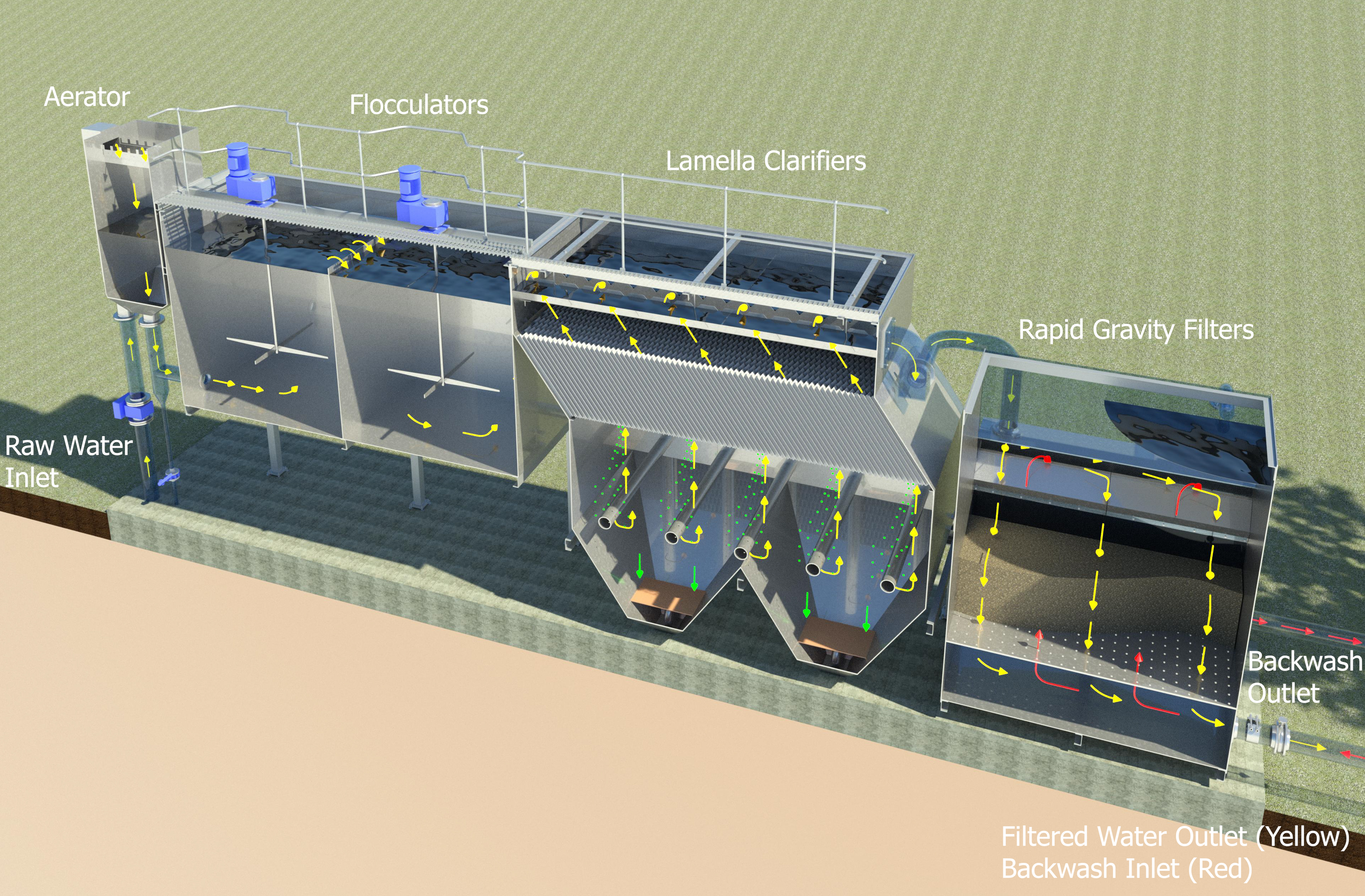

Bipak standard unit configuration

Bipak 3D model. Highlighting compact layout in limited site area

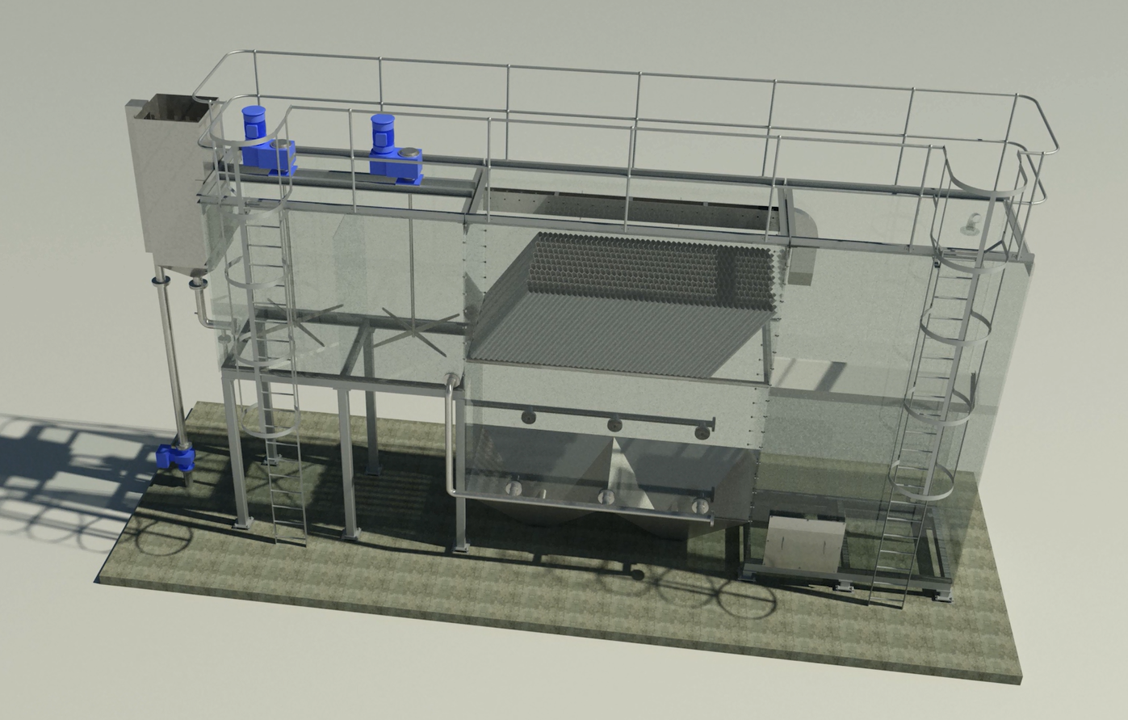

Bipak standard unit configuration - 15 cubic metres per hour

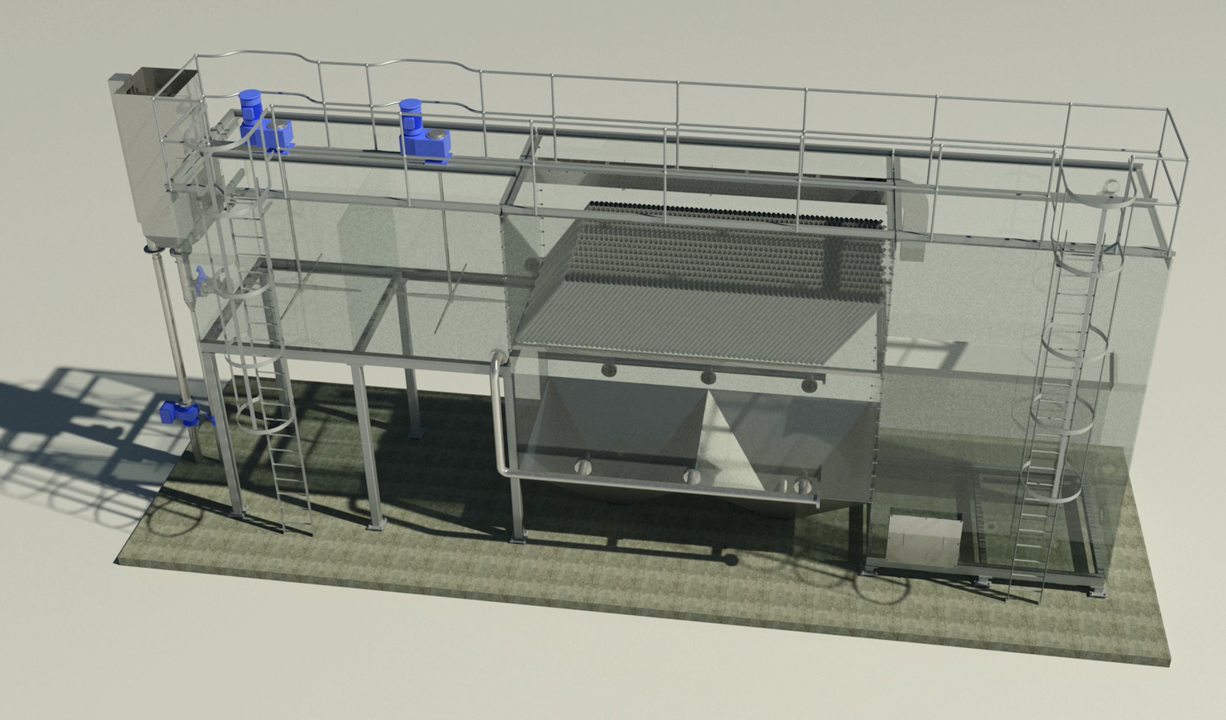

Bipak standard unit configuration - 30 cubic metres per hour

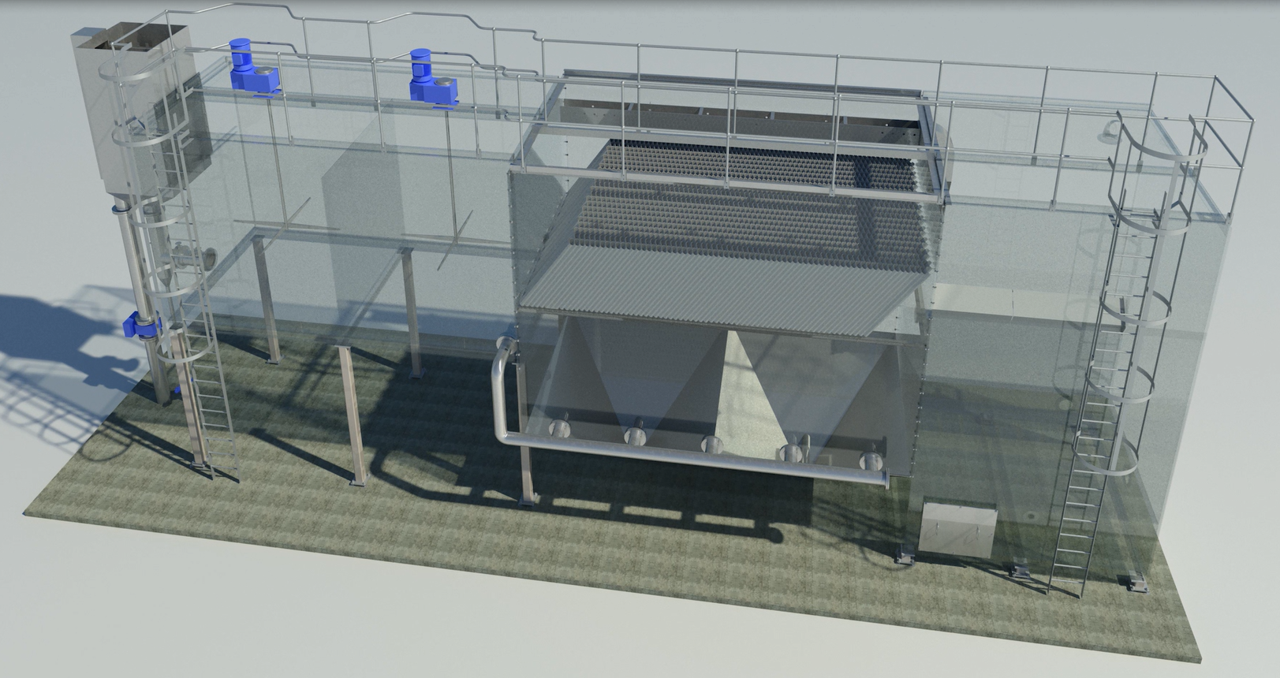

Bipak standard unit configuration - 50 cubic metres per hour

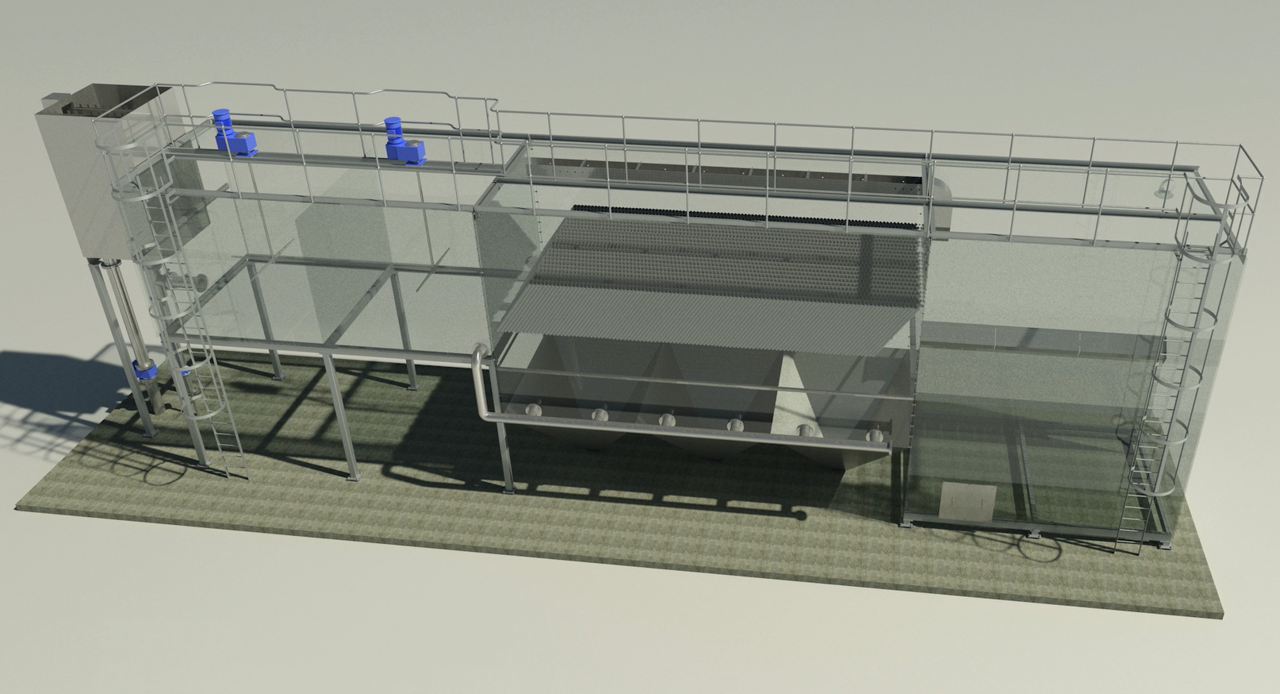

Bipak standard unit configuration - 75 cubic metres per hour

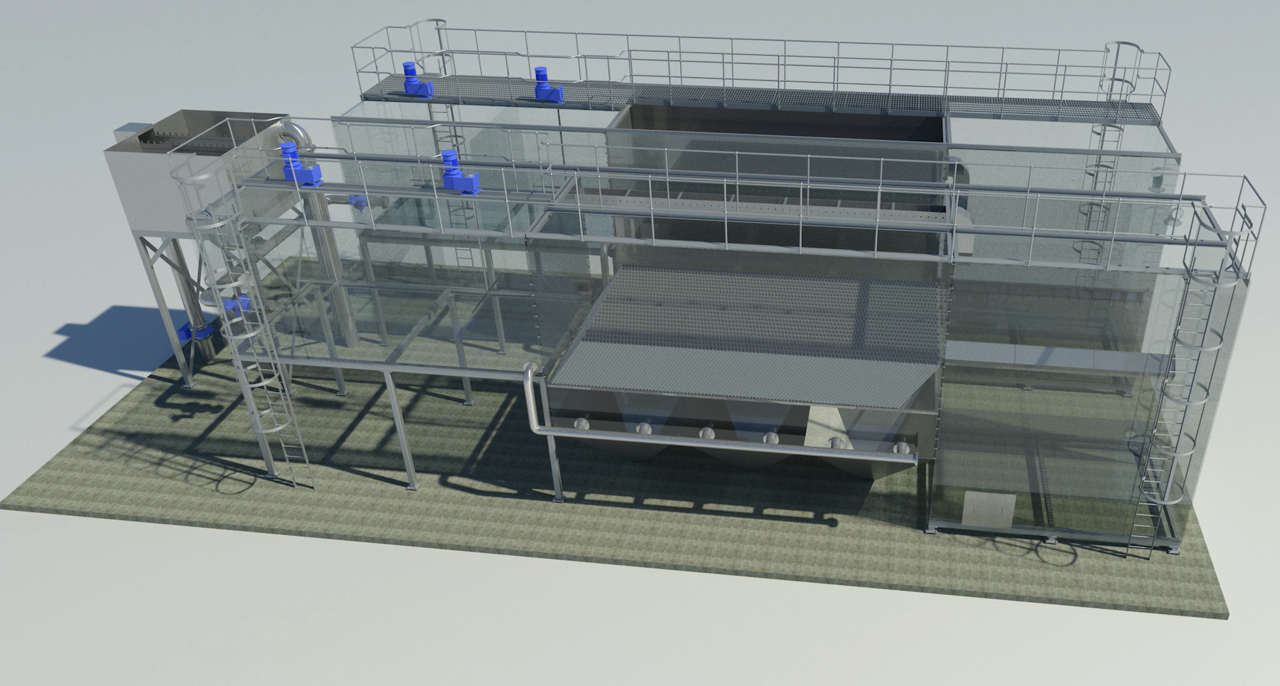

Bipak standard unit configuration - 150 cubic metres per hour

Biwater provide a full engineering service. In providing the Bipak total water treatment solution, the engineering services will include development of the system and submission of detailed information, based on the available data for each specific project location.

For more information, please contact us using the details in the Bipak brochure.
